Precision temperature control platforms for InfraScope™ and QuantumScope™ systems, sized to match your device and application.
Thermal Stages Built for Your Application
Every failure analysis or temperature mapping session starts with getting the device under test properly seated, biased, and thermally controlled. Our thermal stages provide that foundation — delivering stable, repeatable temperature control across a range of sizes and power levels, from small single-die setups to large board- and wafer-level applications. Below is an overview of our standard thermal stage lineup. If your application calls for something outside these standard configurations, get in touch — we regularly design custom stages to match unique requirements.
2″ Thermal Stage
Compact format
Our smallest thermal stage, suited for small-format devices and space-constrained setups where a compact footprint is a priority.
4″ Thermal Stage
Our most widely used platform
Our most popular thermal stage by far, providing reliable, well-proven temperature control across the broad range of device sizes we see in typical failure analysis and temperature mapping work.
8″ Hi-Power Thermal Stage
Higher power dissipation
Built on the same footprint as our 8″ standard stage, with a significantly thicker Teflon® outer ring to support higher-power devices during test.

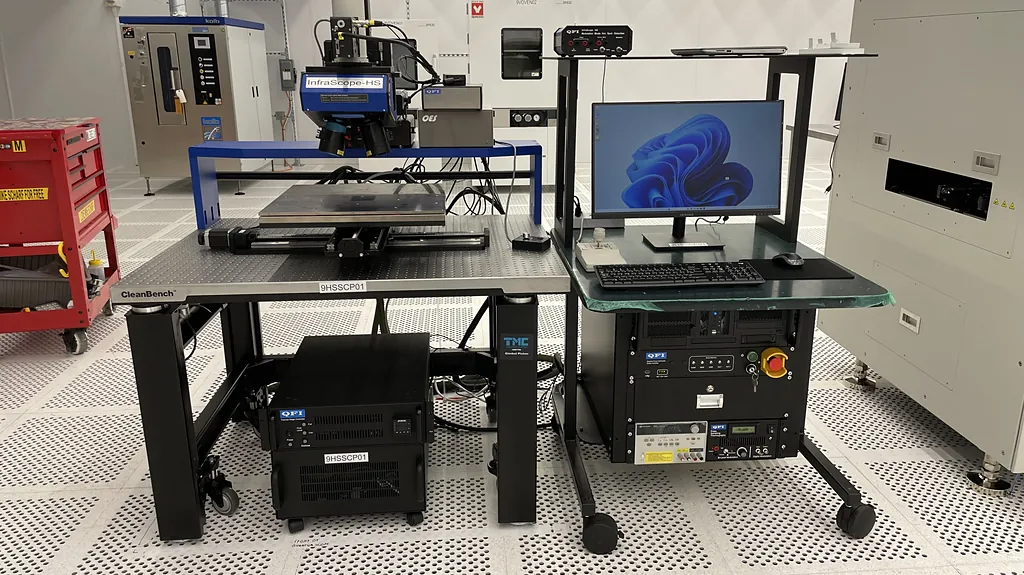

20″ Thermal Stage
Large-format / 500 mm platform
Our largest thermal stage, built for large-board and full-panel applications that call for extensive temperature-controlled surface area.
Not sure which thermal stage fits your application?
Tell us about your device and testing requirements and we’ll help you find the right stage — standard or custom.
